User-Friendly Phase-Noise Measurement for HP, Tektronix and Advantest Spectrum Analyzers

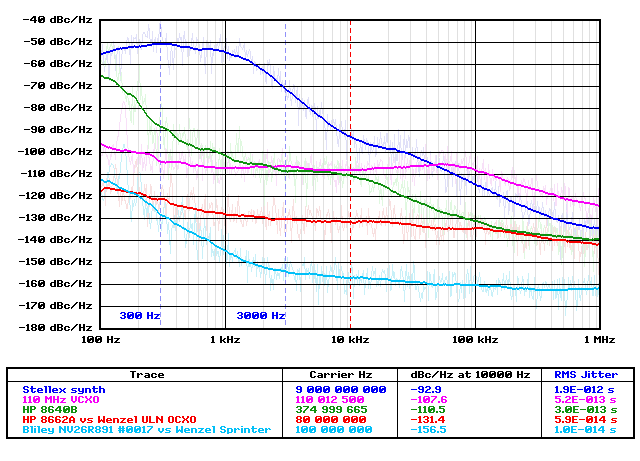

PN.EXE is a graphical Win32 application that lets you acquire, display, overlay, caption, and print noise plot (.PNP) files. It offers many of the capabilities provided by Agilentís 85671A phase-noise measurement package.

The current version of PN supports the following spectrum analyzer models:

PN is able to support the ďclassicĒ models like the HP 8566 because it runs on a GPIB-connected host PC, rather than the analyzer's own internal processor. Even when running on an $83,000 HP 8565EC, the Agilent noise-measurement software canít take advantage of the control, display, and connectivity options available on a modern PC.

PN.EXE is part of the KE5FX GPIB Toolkit. The latest version of the Toolkit is downloadable here.


Although PN is very easy to use, the art of making valid, repeatable noise measurements demands an understanding of the limitations of the instruments and processes involved. HP application note AN 270-2 is strongly recommended to users who are new to PN and phase-noise measurement in general. Don't be put off by its focus on a particular analyzer -- this is the best app note on the subject that I've seen.

For more information, see Hewlett-Packard's Phase Noise Measurement Seminar course notes (124 pages, 7 MB), as well as the other references mentioned in the GPIB Toolkit FAQ.

Running PN

Depending on the options you selected during installation, you can run PN.EXE from the Start menu, by clicking on its desktop shortcut, or by using its Quick Launch icon on the taskbar. You can also run PN.EXE from a DOS-box command line or Windows Start->Run... command, optionally specifying the filenames of one or more existing .PNP files. Use quotes around filenames that contain spaces -- for example,

      PN "synth test.pnp"          ... Display "synth test.pnp" by itself
      PN before.pnp after.pnp      ... Overlay before.pnp and after.pnp
      PN (no command-line options) ... Attempt to reload the last-viewed set of .PNP files, if any

Menu Commands and Keyboard Shortcuts

Note that many of the menu commands in PN have equivalent keyboard shortcuts, useful on crowded lab benches that donít have room for a mouse.

     Key               Menu Command                          Remarks
l File->Load PNP data... Load and display a new .PNP file. Up to 8 acquisitions may be loaded at once s File->Save image or PNP data... Save a .GIF, .TGA, .BMP, or .PCX, or a copy of the currently selected .PNP file x File->Export smoothed trace to .TXT or .CSV file Save the currently selected trace as a list of comma-separated offset (Hz), amplitude (dBc/Hz) pairs. If the .TXT suffix is used, each offset,amplitude pair will be followed by a CR/LF p File->Print image Sends the current display to the default Windows printer File->Sort file dialogs by modification date Causes file listings to be sorted by modification date by default, rather than by filename Delete File->Close current plot Remove current .PNP file from display list, without deleting it Home File->Close all visible plots Close all loaded .PNP files. This command does not delete any files; it simply removes them from PN.EXE's current display list. Ctrl-Delete File->Delete current .PNP file Remove current .PNP file from display list, deleting it permanently q or Esc File->Quit b View->Browse sources one at a time Surf through all loaded .PNP files without overlaying them o View->Overlay all sources Display up to eight .PNP files at once + or down-arrow View->Next source Advance selection to the next .PNP file - or up-arrow View->Previous source Go back to the previous .PNP file Ctrl-up-arrow View->Move selected source up Move selection up in the list of loaded .PNP files Ctrl-down-arrow View->Move selected source down Move selection down in the list of loaded .PNP files v View->Toggle visibility of selected source Allows you to temporarily remove a trace from the display without closing it; useful when comparing traces in displays with numerous overlaid sources 5 Display->512 x 384 Adjust window area to one of several standard sizes 6 Display->640 x 480 (These commands are particularly useful when youíve 7 Display->800 x 600 selected too many entries with the Legend menu, 8 Display->1024 x 768 causing the table to grow beyond the confines of the 9 Display->1152 x 864 window) 0 Display->1280 x 1024 C Display->High contrast Toggle between low-contrast and high-contrast display modes for best legibility on various displays and printers Ctrl-0 Trace->No smoothing No smoothing is applied to the visible trace(s) Ctrl-1 Trace->2-point smoothing Smooth by averaging the specified number of adjacent trace points Ctrl-2 Trace->4-point smoothing at each pixel Ctrl-3 Trace->8-point smoothing Ctrl-4 Trace->16-point smoothing Ctrl-5 Trace->24-point smoothing Ctrl-6 Trace->32-point smoothing Ctrl-7 Trace->48-point smoothing Ctrl-8 Trace->64-point smoothing Ctrl-9 Trace->96-point smoothing Trace->Use alternate smoothing algorithm Selects a different smoothing technique that provides greater accuracy at the traces' left endpoint in certain situations Ctrl-s Trace->Enable spur reduction Helps reduce the influence of discrete spurs on traces, at some cost in rendering speed t Trace->Set spur threshold in dB... Allows you to specify the spur-detection threshold relative to the average value of nearby trace points. You can also use ctrl-keypad- and ctrl-keypad+ to increment and decrement the threshold while observing its effect on the displayed traces. Excessive use of spur clipping will degrade overall accuracy! g Trace->Enable ghosting Show or hide unsmoothed raw trace(s) behind smoothed trace(s) c Trace->Allow vertical clipping Attempt to improve the legibility of traces by giving them more vertical headroom e Trace->Edit caption... Change or add a caption for the currently-selected trace The trace's file will be updated automatically with the new caption Legend->Trace Display trace caption Legend->Filename Display trace filename Legend->Carrier Hz Display frequency of carrier from which trace was acquired Legend->Carrier dBm Display amplitude of carrier from which trace was acquired Legend->dBc/Hz at Spot Offset Display trace amplitude at spot on graph selected via left click Legend->Residual FM Hz Display DSB residual-FM amplitude between the integration cursors Legend->RMS Integrated Noise (Degs) Display DSB RMS phase jitter in degrees or radians for the area between Legend->RMS Integrated Noise (Rads) the integration cursors Legend->RMS Time Jitter Display the same phase-jitter value in seconds, based on the carrier frequency Legend->SSB Carrier/Noise dB Dislpay SSB power between the integration cursors, relative to the carrier level Legend->Ext Mult Display external frequency multiplication factor, if any Legend->Ext LO Display frequency of external LO, if any Legend->Ext IF Display frequency of external IF, if any Legend->RF Atten dB Display analyzerís RF attenuator setting Legend->Clip dB Display requested carrier-clipping value in dB Legend->VBW/RBW Display video/resolution bandwidth ratio Legend->Sweep Display total time taken by all sweeps during acquisition Legend->Time/Date Display acquisition time/date stamp Legend->Instrument Display spectrum-analyzer model designator Legend->Rev Display spectrum-analyzer revision designator Legend->All Select all displayable fields above Legend->None Deselect all displayable fields above Acquire-> ... Acquire noise plot from various spectrum analyzer models Space Acquire->Repeat last acquisition ... Shortcut to return to most-recently-used acquisition dialog

Mouse Controls and Integration Features

Left-click anywhere within the graph to place the red "Spot Cursor" at the nearest vertical division. This cursor will be visible only if the Legend->dBc/Hz at Spot Offset option is selected for viewing.

Ctrl-left click within the graph to establish the lower integration-range offset for the Residual FM Hz, RMS Integrated Noise, RMS Time Jitter, and SSB Carrier/Noise options on the Legend menu. The blue integration-boundary cursors will be visible only if at least one of these options is selected for viewing. Like the Spot Cursor, the integration cursors automatically snap to their nearest vertical division.

Ctrl-right click to place the upper integration-range offset cursor used by the features above.

Important note: Like the single-point Spot Cursor, PN's trace-integration algorithm -- used whenever RMS noise, jitter, residual FM, or carrier/noise ratio values are displayed -- works on the displayed data after smoothing (if any) has been applied. This means that any changes you make to either the display resolution or smoothing level can affect the displayed values. Such effects are not usually very significant, but if repeatability is important, you may wish to make a note of the display resolution and smoothing level when logging your noise measurements.

Acquisition Dialog

Selecting a spectrum analyzer model from the Acquire menu will bring up the Acquisition dialog box. Depending on the analyzer type selected, the acquisition dialog's appearance can vary slightly from the example below.

Caption specifies an optional caption for the trace being acquired. To display trace captions beneath the graph in the main window, select the Legend -> Trace option.

Carrier specifies the carrier frequency in hertz (e.g., 10000000 = 10 MHz). Scientific notation may also be used (e.g., 1.2E9 = 1.2 GHz). This is the frequency of the source under test, before any external frequency conversion or multiplication is applied.

With some analyzers, this field may be left blank to cause PN to select the highest onscreen signal for measurement. The desired signal must be higher than any other peak, including the 0-Hz spike if any. The selected frequency will be rounded to the nearest multiple of the minimum offset frequency.

You may also enter the carrier's amplitude level in dBm in the box to the right of the frequency field. This is the amplitude of the test signal as it arrives at the analyzer's input jack, after any external frequency conversion or multiplication is applied. You can leave this field blank with any analyzer model, but if the amplitude is known, specifying it here will reduce measurement time and improve repeatability.

The automatic carrier-detection feature is only as "smart" as the analyzer's marker functionality. It can fail to work properly if the 0-Hz spike or negative (mirrored) signals become visible while centering and zooming in on the desired signal.

External Conversion tells PN that the carrier is being mixed with an external LO signal to generate an IF within the spectrum analyzer's tuning range (or an optional frequency multiplier's input range). Both of these fields should be left blank if no external mixer is present. Otherwise, enter the LO frequency used to perform the conversion, followed by the IF at the mixer output where the measurement (or multiplication) takes place. More about indirect phase-noise measurements can be found in the FAQ.

External Multiplier tells PN that an external frequency multiplier (e.g., 2 for a doubler, 3 for a tripler...) is present at the spectrum analyzerís RF input. Enter 1 here if no multiplier is present. Fractional values can be used to specify frequency division rather than multiplication (e.g., 0.125 for a divide-by-8 stage).

The use of an external xN multiplier improves the analyzerís equivalent phase-noise floor by 20 x log10(N) dB. You can use a microwave "brick" source to multiply your test signal dozens of times if desired, but be sure you understand its loop-bandwidth and inband noise-peaking characteristics!

Measurement Offset Range specifies the minimum and maximum carrier offset frequencies in Hz. Offset frequencies are rounded to the nearest power of 10 and used to determine the left and right boundaries of the log-log plot.

The minimum offset frequency should be at least 3x the analyzerís minimum resolution bandwidth, rounded up to the next decade. Minimum offsets below this limit will yield meaningless results. For instance, the Tektronix 494P's 30-Hz filter allows it to support minimum offsets down to 100 Hz, while the Tektronix 2782/2784's 3-Hz filter supports minimum offsets down to 10 Hz. Keep in mind, however, that the analyzer's filter skirt will have a pronounced effect on the trace if the requested minimum offset is not at least 10x the narrowest-available resolution bandwidth.

Most applications should specify 1 MHz as the maximum offset frequency.

Carrier Clipping Level specifies the amplitude offset above the analyzerís reference level (top graticule line) at which the carrier will be positioned during the noise measurement. Clipping can improve the accuracy of measurements made near the analyzerís LO or RF noise floor, at the risk of driving its front-end mixer into compression.

10 dB of clipping is recommended for most applications; 20 or 40 dB may be helpful on analyzers with 8-division displays such as the Tek 490 and HP 8590 series, or those with very low phase-noise floors such as the HP 8568A/B. The 40-dB option is also useful in suppressed- carrier measurements. Use caution at high signal levels!)

VBW:RBW Ratio specifies the video:resolution bandwidth ratio. This determines the compromise between measurement time and repeatability. Most applications will not need to change the default value of 1.0. Lower values can yield better repeatability Ė assuming the analyzer has warmed up thoroughly Ė but can take much longer to execute.

On some analyzers such as the Tektronix 490P/2750P series and HP 3588A/3589A, the VBW:RBW ratio is determined by the instrument's front-panel settings at the time the measurement is initiated.

Noise Response specifies the factor used to correct the measurement for the response of the analyzerís RBW filters and video detector to Gaussian noise, plus any other system-level factors that require compensation. The noise-response value is added to all displayed data points.

PN's default noise-response value is 2 dB for many analyzers. Others, such as the Tektronix 490P/2750P and HP 3588A/3589A, maintain their noise-correction factors internally, so the default value for these instruments is 0 dB.

Instrument GPIB Address specifies the spectrum analyzerís GPIB address as a decimal value. The default GPIB address for many of the HP analyzers supported by PN is 18.

Additional Instrument Notes

Tektronix 490P/2750P series The rear-panel LF-or-EOI switch must be set to '1' to use the GPIB Toolkit with all spectrum analyzer models in this series.

The earlier 492P and 496P analyzers do not use fully-synthesized tuning. As a result, you'll need to center the carrier signal manually prior to the beginning of each acquisition, even if you enter an explicit carrier frequency in the acquisition dialog. (The program will first tune the analyzer as close to the specified frequency as possible, so be sure to wait until you're prompted before you center the carrier.)

The 492P and 496P analyzers also don't compensate for errors in their IF center frequencies like the 494P and later models do, so accuracy in multi-decade measurements may be degraded.

HP 3585A/B Because the HP 3585A/B analyzers support only positive-peak detection, the VBW:RBW ratio in the Acquisition dialog should be set to 0.01 when high accuracy is required. This increases trace-acquisition time substantially, requiring up to 25 minutes for measurements between 10 Hz and 1 MHz. To speed up the acquisition process when absolute accuracy is not critical -- for example, when acquiring noise traces specifically for comparison with others from the same analyzer -- you can change the VBW:RBW default from 0.01 to 0.1 or even 1.0.

It is recommended that the HP 3585A/B's autoranging feature be turned off when using PN, especially when using carrier-clipping factors greater than 0 dB. (Use of carrier clipping may also cause the analyzer to report an overload condition; this is normal.) The REF LVL TRACK function should normally be left disabled.

Note that PN will disable auto-calibration and the error beeper while it is communicating with the HP 3585A/B, but it will not alter any other instrument settings, including autoranging and reference-level tracking, that are not directly associated with the measurement process.

Advantest R3261A: Prologix users may find it helpful to select 'Edit CONNECT.INI' in the GPIB configurator and set force_auto_read to 0, if invalid plots are returned from the analyzer.

Advantest R3264, R3267, and R3273 These analyzers can optionally use digital (FFT) filters to support resolution bandwidths down to 1 Hz. As a result, they are capable of PN acquisition at minimum offsets down to 10 Hz. However, their minimum offset is limited to 100 Hz (10 Hz RBW) unless digital filtering has been explicitly enabled with the Couple->RGB ≤100Hz ANLG/DGTL menu option.

By default, these digital filters are not enabled at power-up time; conventional analog filters are used instead. If you need to specify a 10-Hz minimum offset, you will need to enable the digital filters manually prior to beginning acquisition.

Due to ADC range limitations in the R3267 family, carrier clipping is ignored in spans acquired using the digital RBW filters.

Advantest R3132 series The default minimum offset with these analyzers is 10 kHz, corresponding to their standard 1-kHz minimum RBW filter setting. If your R3132-family analyzer has the optional 30-300 Hz RBW filters, you can specify minimum offsets down to 100 Hz.

Advantest R3131A It may be necessary to set write_delay_ms to 200 in the CONNECT.INI file (see below) when using a 2400-bps direct serial connection.

Keysight N9030A PXA These analyzers can be used by selecting the Agilent E4400 PSA/ESA acquisition option. Reports indicate good results with the VBW:RBW ratio left at its default setting of 1.0 and carrier clipping level set to 0 dB. Other settings and modes may not work properly.


After installation of the GPIB Toolkit, your PC should also contain a file called CONNECT.INI, which tells the Toolkit applications how to take advantage of various GPIB connectivity options. These include direct RS-232 or TCP/IP links, as well as the Prologix GPIB-USB and GPIB-ETHERNET adapters.

If you have a Prologix adapter, you can review the comments in CONNECT.INI to learn how to configure PN and the other GPIB Toolkit applications to use it, or you can simply select your adapter in the GPIB configurator application (PROLOGIX.EXE) and press "Update CONNECT.INI" to automate the configuration process.

If the COM port specification in CONNECT.INI is commented out with a leading semicolon -- or if CONNECT.INI is missing entirely -- all GPIB Toolkit applications will attempt to communicate with the GPIB0 device via the National Instruments NI488.2 programming interface instead. This is the default behavior.

Note that some versions of Windows hide .INI file suffixes by default. In Windows 2000 and XP, for instance, CONNECT.INI may appear simply as "CONNECT," with the type "Configuration Settings." To turn off this behavior, go to the Tools->Folder Options->View tab in any Explorer window and deselect the "Hide file extensions for known file types" option. The exact location of CONNECT.INI will vary from one Windows installation to the next. It's often easier to select the "Edit CONNECT.INI" button in the GPIB configurator application than to try to locate the file yourself.

Analyzer Baseline Traces

Different analyzer models have widely-varying system noise characteristics that must be taken into account when making direct phase-noise measurements. In particular, the source being measured needs to be at least a few dBc/Hz "dirtier" than the spectrum analyzer's own LO subsystem, or the resulting measurement will reveal more about the analyzer's noise profile than that of the source under test! To avoid drawing misleading conclusions from your noise measurements, it's a good idea to display them alongside a baseline plot for the analyzer model you're using.

The C:\Program Files\KE5FX\GPIB directory where PN.EXE is installed by default contains a subdirectory called Composite noise baseline plots. This subdirectory contains a variety of .PNP files that can be loaded and displayed by PN.EXE. These files are representative baseline noise-floor plots for various spectrum-analyzer models. If your analyzer model isn't included, it isn't difficult to make your own baseline plot, as long as you have access to a strong CW signal that's significantly cleaner than the analyzer's baseline response when tuned near the measurement frequency of interest.

In the manual for their HP 85671A noise-measurement package, Hewlett-Packard recommends against using the analyzer's own calibrator for noise baseline plots. The analyzer's LO and calibrator are both derived from the same internal source, potentially leading to correlation effects that misrepresent the analyzer's true noise response. In a pinch, though, your analyzer's calibrator is most likely OK as a noise-reference source. I haven't noticed any meaningful differences when comparing baseline traces taken from various analyzer models' calibrators versus known-uncorrelated sources.

How to Make Good Composite-Noise Measurements

First, read the HP app note cited near the top of this document. Then, read this help file in its entirety. Noise measurement can be tricky -- it's easy to fool yourself (and others) into thinking that bad data is valid.

One hint: watch the analyzer's trace while PN is working, and try to keep the noise floor out of both the top and bottom graticule divisions. Use 10 dB or 20 dB of carrier clipping if necessary to keep the noise floor above the bottom of the graticule where the analyzer's amplitude accuracy is at its worst. Especially when taking baseline plots, don't measure sources weaker than -20 dBm or so.

Don't forget that you may need to manually select 0 dB of RF attenuation at the analyzer's front panel to keep its front-end noise figure from dominating measurements of weaker signals. And don't forget how easy it is to blow mixer diodes when you do this.

Release Notes

Release 0.90 of 7-Aug-05

Release 0.95 of 22-Aug-05

Release 0.96 of 5-Sep-05

Release 1.00 of 13-Dec-05

Release 1.01 of 28-Dec-05 Release 1.02 of 3-Jan-06 Release 1.03 of 5-Jan-06 Release 1.04 of 8-Jan-06 Release 1.05 of 14-Jan-06 Release 1.06 of 10-Mar-06 Release 1.07 of 18-Apr-06 Release 1.08 of 3-May-06 Release 1.09 of 6-Jul-06 Release 1.10 of 24-Aug-06 Release 1.15 of 1-Oct-06 Release 1.20 of 6-Oct-06 Release 1.21 of 15-Jan-07 Release 1.22 of 22-Jan-07 Release 1.23 of 20-Mar-07 Release 1.24 of 10-Apr-07 Release 1.25 of 04-Nov-07 Release 1.26 of 06-Nov-07 Release 1.27 of 1-Jan-08 Release 1.28 of 2-Jan-08 Release 1.29 of 8-Jan-08 Release 1.30 of 10-Jan-08 Release 1.31 of 26-Jan-08 Release 1.32 of 05-Apr-08 Release 1.33 of 13-Apr-08 Release 1.34 of 1-May-08 Release 1.35 of 11-May-08 Release 1.36 of 14-Jul-08 Release 1.37 of 10-Sep-08 Release 1.38 of 20-Oct-08 Release 1.39 of 8-Apr-09 Release 1.40 of 28-Jul-10 Release 1.41 of 10-Sep-10 Release 1.42 of 25-Feb-11 Release 1.43 of 7-Mar-11 Release 1.44 of 30-May-11 Release 1.45 of 16-Sep-11 Release 1.46 of 2-Jul-12 Release 1.47 of 2-Jul-12 Release 1.48 of 23-Dec-14 Release 1.49 of 10-Jul-15 Release 1.51 of 19-Mar-20

Acknowledgements and Additional Notes

The assistance (and patience) of Dave Robinson, WW2R, and Vladan Temer of Sonoma Instrument, are gratefully acknowledged.

Thanks to Dr. Alfredo Rosati, I5UXJ for his contribution of the Tektronix 2782/2784 support code, Magnus Danielson for HP 4195A support, and Dmitry Teytelman for HP 4396A/B support. Advantest TR4172 code provided by Stefan Heinzmann. Ron Kittel, K8AQC, and Grant Hodgman, G8UBN provided extensive help with development and testing on the HP 3585A. Matt Ettus of Ettus Research provided access to the Advantest R3267, and Jack Smith, K8ZOA of Clifton Laboratories provided access to the Advantest R3463. Advantest R3131A support code was provided by Piotr Kaczmarzyk. Darren Storer, G7LWT provided access to the Advantest R3361A, while Dimitry Borzenko, 4Z5CP, provided access to the Anritsu MS8604A.

The assistance of Had Allhands, K7MLR with the HP 3588A, Abdul Nizar with the Agilent E4402B, and David Upchurch with the N9030A is greatly appreciated.

Released into the public domain 7-Aug-05 by John Miles, KE5FX.
Please contact with feedback and enhancements!

Source code compilable with the free Microsoft Visual Studio Express package
No warranties, expressed or implied, are offered with this program.
Use at your own risk!
