Notes on MicroSource MSS252-791-002 Synthesizer Modules


LMDS Synthesizer Block Diagram
MC12022 MECL prescaler data sheet
Qualcomm Q3236 PLL data sheet (8/1997) (alternate copy here is shorter but more legible)
Qualcomm Synthesizer Products (4/2000, with some rendering problems)
Phase noise 26 GHz

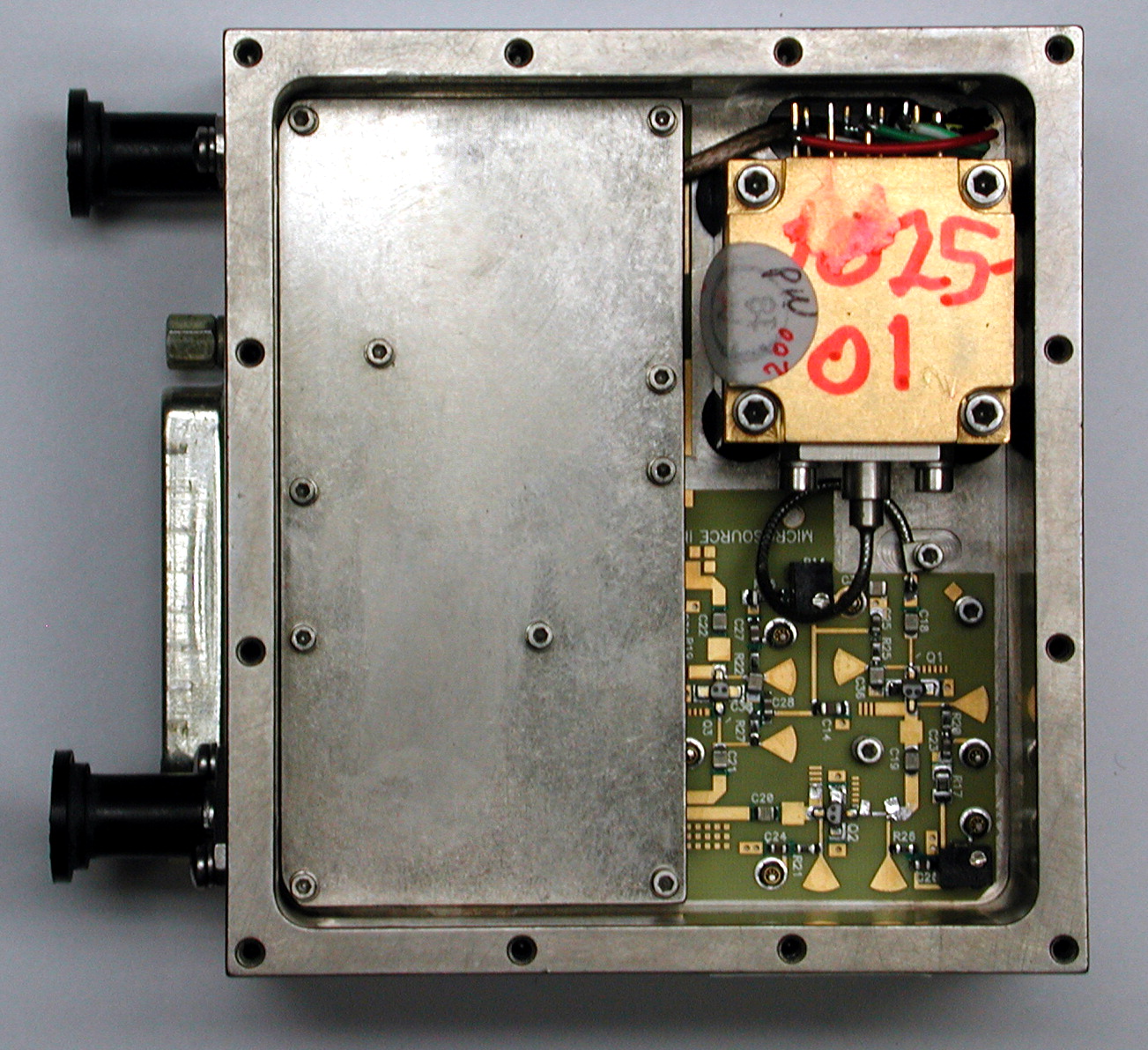

Pictures and Brief Description
Revised Detailed Block Diagram
SNP2627 Block Diagram
SNP 520-series Data (another MicroSource YIG synthesizer with superior PN and tuning range)


Connection data



Wiring Reference for 25 pin D connector
MSS2527-910-04
DC200393001

PIN 	REF 	     	Q3236 function(s)
____________________________________________

1 	d3 	     	A3, SMODE
2 	d1 	     	A1

3 	d8 	     	M4, DBUS4, SEN\
4 	d6		M2, DBUS2
5 	d4		M0, DBUS0

6 	F LOCK
7 	PWR BIT

8 	 +5 VDC, 700 mA
9 	+15 VDC, 300 mA
10 	-15 VDC, 45 mA
11 	NC

12 	NC
13 	NC


14 	d2 		A2, M2 WR
15 	d0 		A0, FSELP

16 	d7 		M3, DBUS3
17 	d5 		M1, DBUS1

18 	grnd
19 	grnd
20 	grnd
21 	grnd
22 	grnd
23 	grnd

24 	NC
25 	NC


Programming notes


Calculate:

	N = Fmix / Fpfd

where Fpfd is always 5 MHz (i.e., 960 MHz / 192) and Fmix is the desired YTO frequency Fyto minus 12480 MHz (960*13).

Then, calculate M and A:

	M = int(N/10) - 1
	A = N - 10(M+1)

where the lower 5 bits of M are applied to these pins:

	M0: 5
	M1: 17
	M2: 4
	M3: 16
	M4: 3

and A is a 4-bit value applied to these pins:

	A0: 15
	A1: 2
	A2: 14
	A3: 1

Notes:
  • Register value constraints: A <= M+1, M = [1,31], N = [90,1295]
  • Consequently, supported values of N range from 90 (M=8, A=0, Fyto=12930 MHz) to 329 (M=31, A=9, Fyto=14125 MHz)
  • Qualcomm Q3236 PLL chip modes are direct parallel input with legacy Q3036 behavior
  • Output frequency will be 2 * Fyto MHz unless you remove the doubler

Observed residual phase noise



Two units were driven by a common 960-MHz source, with their outputs mixed down to 400 MHz and measured with a 3-dB correction factor. Actual residual noise may be a bit better due to the nonzero IF.
